Overview

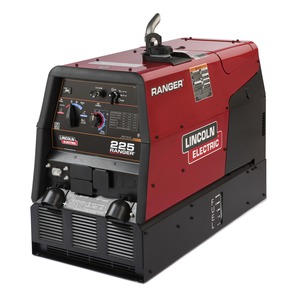

Got It Covered!™ Enclosed-Case Welder

A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Ranger® 225 does a variety of basic welding jobs. And with 10,500 watts of peak AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power. At your service – everyday!™

• Totally Enclosed Case
• Engine is fully protected.
• 3 service access doors.
• Low Noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
• Versatile DC Welding10,500 Watts Peak Single-Phase AC Generator Power
• Smooth DC welding output for a broad range of stick electrode types.
• MIG, Flux-Cored and TIG capable (with optional equipment).
• Peak for motor starting.
• 9,000 watts continuous power for generator, plasma cutter or inverter welder.
• Lights, grinder, power tools.
• 23 HP Kohler® Gasoline Engine
• 2 cylinder, 4 cycle overhead valve air-cooled design.
• Oil drain extension for easy oil changes.
• 12 gallon tank for extended run times.
• Only 1.3 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
• Rugged Reliability
• Welding and AC Generator Outputs Rated at 104°F (40°C).
